Multiple Inverse Method
Software Package
Tectonic Study Group
Kyoto University
The latest MIM software package, which has been released since November
4, 2011, includes the computational grid that utilizes the spherical code
of Yamaji and Sato (in press).
Explanation- This software package impliments the multiple inverse method (ver. 6).
The method is designed to separate stresses from heterogeneous fault-slip
data and from heterogeneous focal mechanism data by means of the combination
of a resampling technique and stress tensor inversion. The method was originally
proposed by Yamaji (2000), and have been evolved by Sato and Yamaji (2006a,
b), Otsubo and Yamaji (2006), Yamaji and Sato (2006), and Otsubo et al.
(2008).
- Contents of the package
- Main Proessor (ver. 6.2)
- Post Proessor (ver. 4.17)
- User's Guide (English and Japanese)
- Auxiliary programs and files including readme.txt
Click here to download the MIM Software Package (mim.zip, 8.7 MB)- Source code of the main processor (source_mim7.zip, 11.1 MB, Fortran)
- Source code of the post processor (source_MIV503.zip, 83.2 MB, Delphi)
- Authors
- Yamaji, A. (Kyoto University)
- Sato, K. (Kyoto University)
- Otsubo, M. (Geological Survey of Japan, AIST)

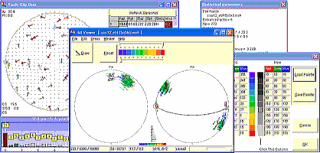

- Screenshot (Post Processor)
- References
- Otsubo, M.. and Yamaji, A. (2006) Improved resolution of the multiple inverse
method by eliminating erroneous solutions. Computers
& Geosciences, 32, 1221-1227. [ScienceDirect]
- Otsubo, M., Yamaji, A. and Kubo, A. (2008) Determination of stresses from
heterogeneous focal mechanism data: An adaptation of the multiple inverse
method. Tectonophysics,
457, 150-160. [ScienceDirect]
- Sato, K. and Yamaji, A. (2006a) Embedding stress difference in parameter
space for stress tensor inversion. Journal
of Structural Geology, 28, 957-971. [ScienceDirect]
- Sato, K. and Yamaji, A. (2006b) Uniform distribution of points on a hypersphere
for improving the resolution of stress tensor inversion. Journal
of Structural Geology, 28, 972-979. [ScienceDirect]
- Yamaji, A. (2000) The multiple inverse method: A new technique to separate
stresses from heterogeneous fault-slip data. Journal
of Structural Geology, 22, 441-452. [ScienceDirect] [Manuscript in Kyoto University Information Repository]
- Yamaji, A. and Sato, K. (2006) Distances for the solutions of stress tensor
inversion in relation to misfit angles that accompany the solutions. Geophysical
Journal International, 167, 913-942. [Wiley
InterScience]
- Yamaji, A. and Sato, K. (in press) A spherical code and stress tensor inversion.
Computers & Geosciences, doi:10.1016/j.cageo.2011.04.016.
November 4, 2011
A. Yamaji
